Architecture overview

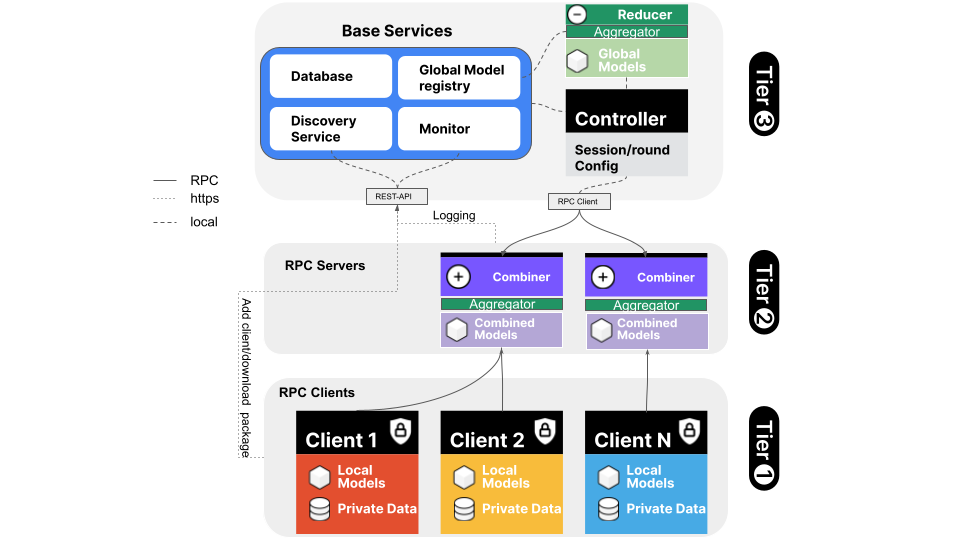

Constructing a federated model with FEDn amounts to a) specifying the details of the client-side training code and data integrations, and b) deploying the federated network. A FEDn network, as illustrated in the picture below, is made up of components into three different tiers: the Controller tier (3), one or more Combiners in second tier (2), and a number of Clients in tier (1). The combiners forms the backbone of the federated ML orchestration mechanism, while the Controller tier provides discovery services and controls to coordinate training over the federated network. By horizontally scaling the number of combiners, one can meet the needs of a growing number of clients.

FEDn network

The clients: tier 1

A Client (gRPC client) is a data node, holding private data and connecting to a Combiner (gRPC server) to receive model update requests and model validation requests during training sessions. Importantly, clients uses remote procedure calls (RPC) to ask for model updates tasks, thus the clients not require any open ingress ports! A client receives the code (called package or compute package) to be executed from the Controller upon connecting to the network, and thus they only need to be configured prior to connection to read the local datasets during training and validation. The package is based on entry points in the client code, and can be customized to fit the needs of the user. This allows for a high degree of flexibility in terms of what kind of training and validation tasks that can be performed on the client side. Such as different types of machine learning models and framework, and even programming languages. A python3 client implementation is provided out of the box, and it is possible to write clients in a variety of languages to target different software and hardware requirements.

The combiners: tier 2

A combiner is an actor whose main role is to orchestrate and aggregate model updates from a number of clients during a training session. When and how to trigger such orchestration are specified in the overall compute plan laid out by the Controller. Each combiner in the network runs an independent gRPC server, providing RPCs for interacting with the federated network it controls. Hence, the total number of clients that can be accommodated in a FEDn network is proportional to the number of active combiners in the FEDn network. Combiners can be deployed anywhere, e.g. in a cloud or on a fog node to provide aggregation services near the cloud edge.

The controller: tier 3

Tier 3 does actually contain several components and services, but we tend to associate it with the Controller the most. The Controller fills three main roles in the FEDn network:

1. it lays out the overall, global training strategy and communicates that to the combiner network. It also dictates the strategy to aggregate model updates from individual combiners into a single global model, 2. it handles global state and maintains the model trail - an immutable trail of global model updates uniquely defining the federated ML training timeline, and 3. it provides discovery services, mediating connections between clients and combiners. For this purpose, the Controller exposes a standard REST API both for RPC clients and servers, but also for user interfaces and other services.

Tier 3 also contain a Reducer component, which is responsible for aggregating combiner-level models into a single global model. Further, it contains a StateStore database, which is responsible for storing various states of the network and training sessions. The final global model trail from a traning session is stored in the ModelRegistry database.

Notes on aggregating algorithms

FEDn is designed to allow customization of the FedML algorithm, following a specified pattern, or programming model. Model aggregation happens on two levels in the network. First, each Combiner can be configured with a custom orchestration and aggregation implementation, that reduces model updates from Clients into a single, combiner level model. Then, a configurable aggregation protocol on the Controller level is responsible for combining the combiner-level models into a global model. By varying the aggregation schemes on the two levels in the system, many different possible outcomes can be achieved. Good starting configurations are provided out-of-the-box to help the user get started. See Aggregators and API reference for more details.
